BioFusion S500/S300/DS100 Infusion pump/syringe pump/infusion information collection system trolley-RS008-08726
Product detailed information
BioFusion S500/S300/DS100 Infusion pump/syringe pump/infusion information collection system trolley-RS008-08726 Specification
- Height range：1700~1800mm
- Injection pump spacing：150mm
- Power cord spacing：150mm
- Overall load-bearing of the cart：20Kg
- Bearing the load of the infusion rod：4kg (single hook 2kg)
- Single fixed clip load：3kg
Recommended accessories
Muti-function Medical Clamp Specification
- Standard installation size：30*30mm ， 25mm
- Application： Infusion pump, patient monitor, blood pressure monitor
- Main advantage：Muti-function , support both pole and channel mount.
- Equipment will not rotate when mount to channel.
Muti-function Medical Clamp-Computer monitor installation-（Circle, rectangle, diamond） Specification
- Load Max：8KG

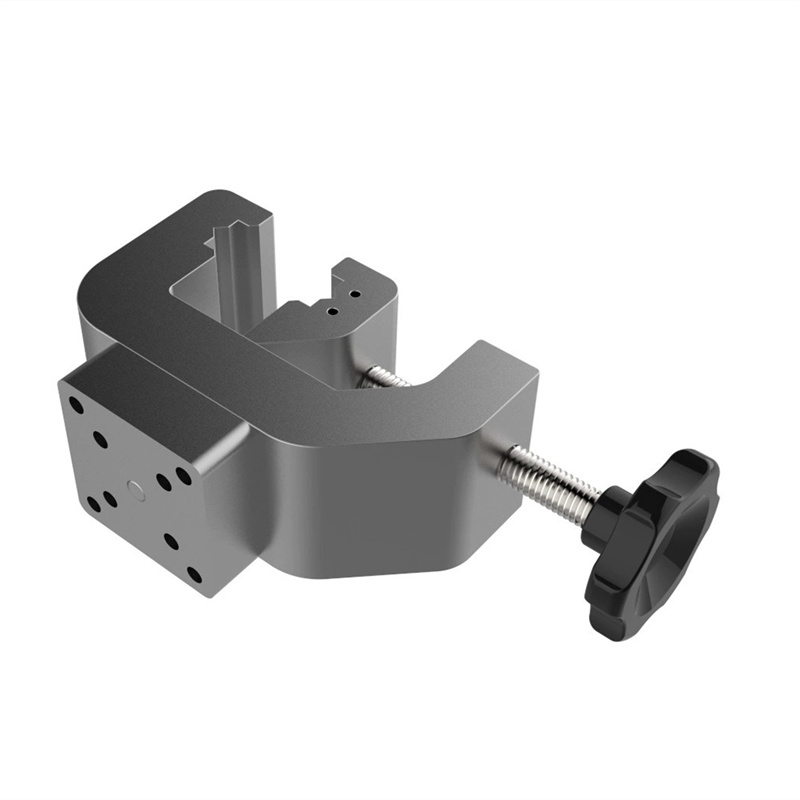

Muti-function Medical Clamp（Circle, rectangle, diamond） Specification
- Standard installation size：17*17mm/30*30mm
- Application： Infusion pump, patient monitor, blood pressure monitor
- Main advantage：Muti-function , support both pole and channel mount.
- Once mounted to the pole, the device can rotate the angle according to the needs of the application

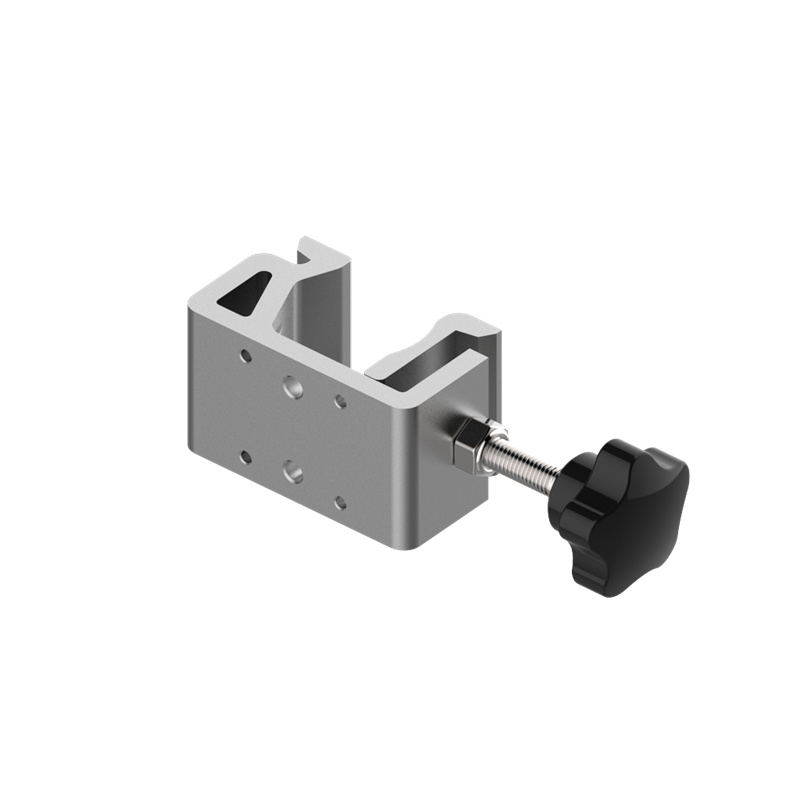

Muti-function Medical Clamp（Circle, rectangle, diamond）-CL001-08875 Specification
- Application： Infusion pump, patient monitor, blood pressure monitor
- Main advantage：Muti-function , support both pole and channel mount.
Create Datasheet
Select options on the right and create a customized datasheet.
Basic Information
| Model | RS008-08726 | Name | 6 + 2 Channel Workstation cart |
|---|---|---|---|
| Infusion pump | 2-Channel | Injection pump | 6-Channel |
| Height range | 1700~1800mm | Injection pump spacing | 150mm |
| Power cord spacing | 150mm | Overall load-bearing of the cart | 20Kg |
| Bearing the load of the infusion rod | 4kg (single hook 2kg) | Single fixed clip load | 3kg |
| Enter the power supply | 100-240V ~ 50/60Hz 2.40-0.84A | Output the power supply | 100-240V ~ 50/60Hz 0.40-0.14A |
Product Description
CORITON RS008 is designed as a infusion pump trolley for clinical equipment support applications. It is suitable for hospital wards, outpatient rooms, emergency departments, diagnostic areas, and mobile clinical workflows where stable device support, organized accessories, and reliable movement between care areas are required. This product can support OEM/ODM medical trolley and mounting projects that need practical installation, durable structure, and clean equipment integration.
